PSIM Exercises for PSIMbook
PSIM Exercises for PSIMbook have been specially developed for schools and universities to help professors and teachers
in their teaching work. It is a package including ready to use and interactive exercises in different field of
Power Electronics.
Each exercise includes a lesson plan, with the content, the specific objectives, the required knowledge and the ressources (summary of course and datasheets). For each system we present the industrial context, the approach and the context of the study. Thanks to this tool and to the pedagogical qualities of the exercices, students will discover power electronics in a new way. They will use a 2 in 1 tool with the exercises and the simulation software in the same application. These exercises are available with PSIMbook which is an add-on module available with PSIM professional and the Student version. PSIM Exercise Book is also available in french. |

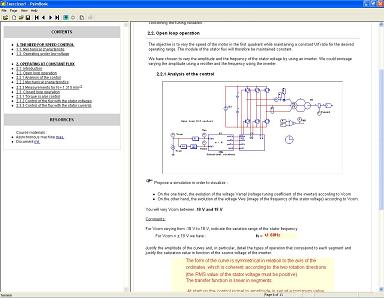

A PSIM Exercise - Enlarged View |
||||||||
|
|
|||||||||
|
PSIM Exercises
Industrial Networks: • Harmonic's Passive Filter for Supply Networks • Rectifier with Sinusoidal Current Absorption (UPFC) * • Distribution Transformer Motion Drive: • Speed Control of D.C. Motor • Series Excited DC Motor • Separately Excited DC Motor Identification • Characteristics of Asynchronous Machines (wind turbine) • Self-Controlled Synchronous Motor Drive * • Scalar Control of Asynchronous Machines * • Vector Control of Asynchronous Machines * |

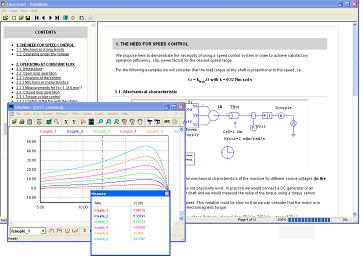

Simulation with PSIM launch from the exercise Enlarged View |
||||||||
|
Power Converters:
• Command of Single Phase AC Choppers • Command of Three-Phase Voltage Source Inverters • Command of Controlled Rectifiers * PSIM Professional Version required. |
|||||||||
