MagCoupler-RT Module
|
The MagCoupler-RT Module provides the link between PSIM and JMAG-RT data files. JMAG-RT
data files are obtained by running the electromagnetic field analysis software JMAG
separately. The main advantage of JMAG-RT is that, since the JMAG-RT data are obtained from the JMAG simulation, the accuracy of a JMAG-RT model is comparable to that of a dynamic JMAG model. However, since JMAG is no longer involved in the simulation, the simulation is significantly faster with the JMAG-RT model. |

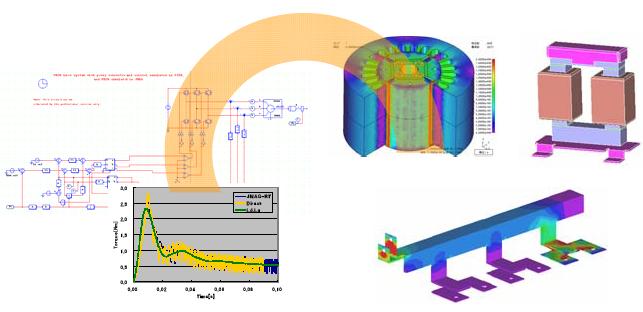

Link between PSIM and JMAG-RT data files |
| * JMAG-RT is copyright by Japan Research Institute, Ltd., 1997-2005. |
