CYMCAP-CIT, Cables in Tunnels Module

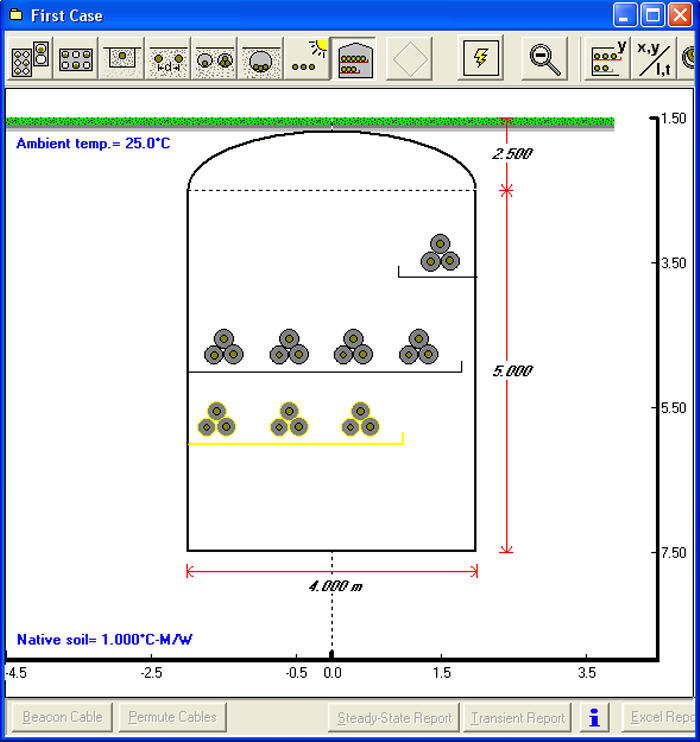

The optional Cables in Tunnels Module allows the user to determine the temperature, steady state, cyclic and transient ampacity of cables installed in unventilated tunnels. Note that only equally loaded cables having the same type and loading are considered. This add-on module supports a large variety of cable arrangements for single core (flat formations or trefoils) and three-core cables. The cables can be laid down on a floor, hanging from supports clamped on a wall, installed in ladder racks or in cable trays.
|
|
Major features are:
- • Modeling of a large variety of installation methods: laying on a floor; hanging from a wall; in ladder-type racks; or in cable trays.
- • Cables and groups of cables can be single-core or three-core. Single-core cables can be arranged in flat formations (vertically or horizontally) or in trefoil.
- • Computation of the steady state ampacity or temperature. Cyclic loading using daily, weekly and yearly load factors. Computation of emergency ratings.
|
|
