ARC Flash Hazard Module
|
The ARC Flash Hazard is an add-on module to our PSAF,
CYMDIST
and CYMTCC programs.
This module is primarily designed to analyze and promote the electrical safety for employees working on or near electrical equipment. By increasing the understanding and awareness of electrical hazards, it is possible to minimize the risk of exposure to them and consequently avoid injury to individuals who work on or near electrical equipment.
|
|
|
|
Program Features
This module computes the necessary parameters required to assess the risk level and adopt the adequate safety procedures. It complies with industry recognized standards and methods for performing ARC Flash Hazard calculations namely:
The above guidelines facilitate the calculation of arc flash hazards in different types of equipment in various power systems. |

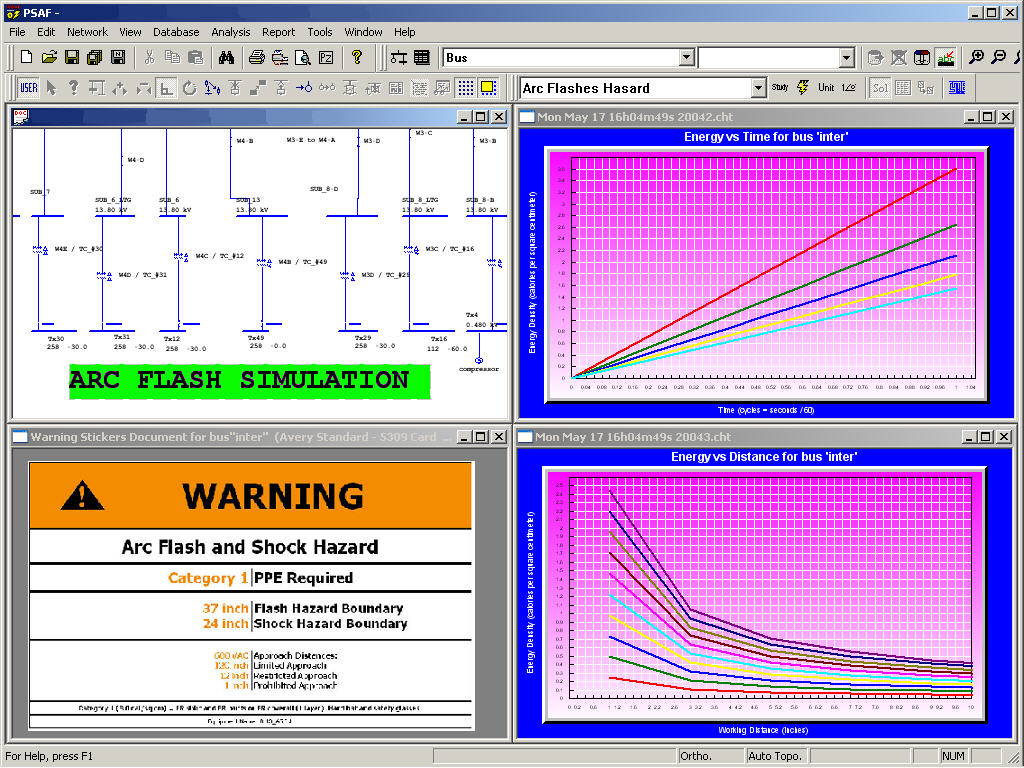

ARC Flash Simulation |
|
Seamless Interface to PSAF, CYMDIST and CYMTCC
The bus data of any network created with our PSAF ,CYMDIST and CYMTCC software can be supplemented with ARC Flash related information such as working distance, bus gap, connected equipment and exposed circuit in cubic enclosers or in open air. In addition, the ARC Flash Hazard module calculates the maximum bolted (3) phase short circuit levels at the desired work place (Bus) for ARC Flash Hazard calculations. |
|
|
Program Features

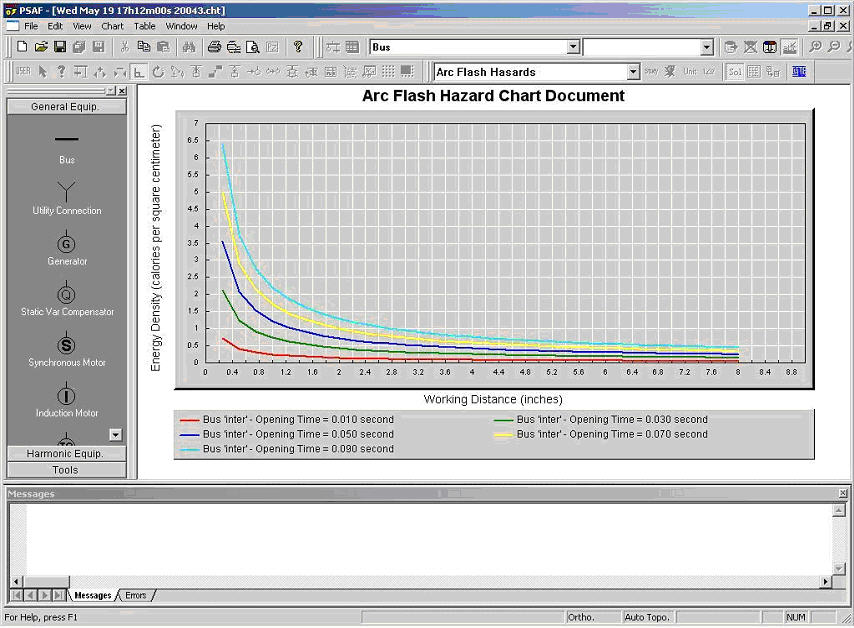

The ARC Flash Hazard module also utilizes our CYMVIEW Simulation Results Manager Program to generate the required results, including:
|
ARC Flash Hazard |
|
Warning Labels
The program generates reports that can be printed directly on ARC Flash Hazard weatherproof warning stickers. These warning stickers include all the necessary information such as :
Multiple label formats are available, and the module provides you with the capability to customize your own labels. |
Warning Stickers |
