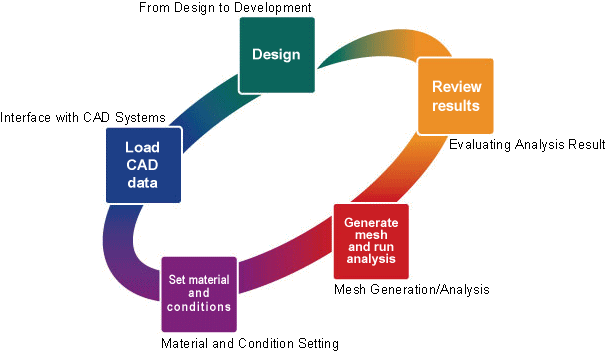

Analysis Steps in JMAG
| FROM DESIGN TO DEVELOPMENT |
| JMAG is designed to assist a wide range of users from analysis experts to design engineers. Automatic mesh generation from CAD data simplifies model creation and allows accurate results to be obtained. |
| INTERFACE WITH CAD SYSTEMS |
|

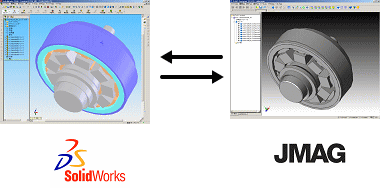

Loading CAD Data The geometry data used in the design process can be directly imported for the analysis. DXF, Universal File, SAT, IGES(3D), CATIA(v4&v5), and Pro/ENGINEER are supported. Link with SolidWorks Powerful link with the standard mid-range CAD system, SolidWorks enables: Geometry modifications maintaining the material properties and condition settings. Geometry modifications made in the CAD system to be evaluated directly, reducing the design and evaluation cycle. Automated parametric calculations with modified 3D geometries are possible in combination with JMAG's parametric analysis function. |
 |
| MATERIAL AND CONDITION SETTING |
|
The material properties and conditions can be easily set for all the analysis types. JMAG has an extensive material database with data provided by leading material manufacturers.
Extensive Material Database JMAG's extensive material database includes magnetic properties, iron loss and electric conductivity for steel sheets, SMC and magnets provided by the leading material manufactures. Electromagnetic steels: JFE Steel Corporation (former NKK and Kawasaki Steel), Nippon Steel Corporation, Sumitomo Metal Industries, Ltd. Soft magnetic composites: Daido Steel Co., Ltd., Hoganas AB |
Material database
|
|
Magnets: DAIDO Electronics Co., Ltd., Hitachi Metals, Ltd. Shin-Etsu Chemical Co., Ltd., TDK Corporation, NEOMAX Co.,Ltd. (former Sumitomo Special Metals Co., Ltd.). |
|
| FLEXIBLE MAGNETIZATION PATTERN SETTINGS |

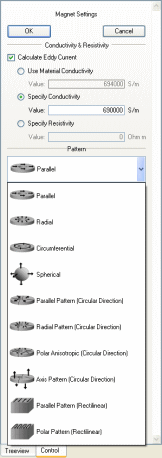

| A variety of magnetization patterns, including polar anisotropy, can be selected from the user interface. JMAG also includes a tool that allows a simulated magnetization pattern to be mapped onto the calculation model. |
Magnetization Pattern
|
| POWERFUL CIRCUIT EDITOR |
| JMAG's circuit editor includes the standard circuit components such as resistors, inductors, capacitors, switches and diodes plus specialist components such as a commutator component and components for linking to the magnetic field model. Circuits can be saved and reused as a subcircuit. |
Powerful Circuit Editor
|
| MESH GENERATION/ANALYSIS |
|
JMAG includes powerful automatic mesh generation tools, including adaptive meshing, which eliminate the necessity for manual mesh creation. When coupled with JMAG's stable high-speed solver even large scale problems can be solved.
Automatic Mesh Generation 2D/3D Mesh Generation Adaptive meshing Automated remeshing to account for arbitrary motion (patch mesh) Sliding mesh for rotating machines Automated air gap meshing for machines with skewed rotors |
Mesh Generation |
|
Fast, Accurate Computation Parallel solver P-ICCG, available on SMP machines Snapshot analysis for use in conjunction with distributed processing |
| EVALUATING ANALYSIS RESULTS |
|
JMAG can present the analysis results using multiple result displays including vectors plots, contours and section graphs. Animations can be displayed inside JMAG or exported to an AVI file. Static images can also be exported, BMP, JPEG, PNG formats are supported.
|
|
Vector display |
Contour display |
Section graph |
Table |
