Electric Field Analysis of Insulator (EL)

	Trial Version
	Video Tutorials

Overview

Electric field analysis is often essential for electrical and electronic devices, and for electric power devices containing insulated structures. Here, evaluation is performed to determine the distribution and concentration of the electric field around the metal sections, with and without fine horns, connected to an insulator (See Figure 1). Meshing is usually difficult with a model like this because the model has a complex geometry and sharp metal parts, but the JMAG automatic mesh generation feature makes this simple (See Figure 2). A high quality mesh is generated, including parts meshed according to the object size, to give high accuracy. Figure 3 shows the distribution of electric potential and distribution of field strength around the metal parts of the model.

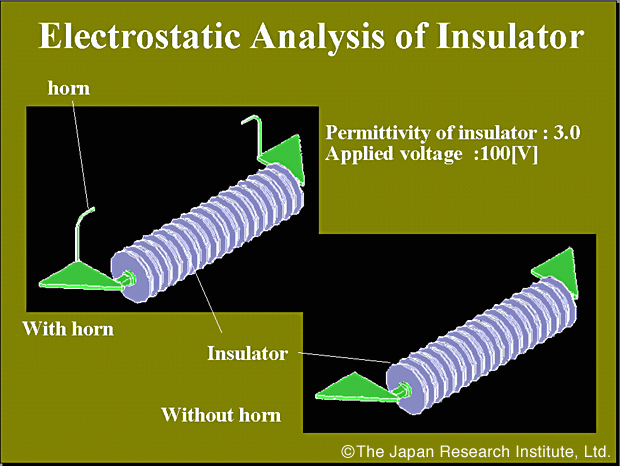

Figure 1 - Distribution and concentration of electric field, with and without horns Enlarged View

Figure 2 - Meshing with division feature Enlarged View	Figure 3 - Distribution of potentials and field strength around the metal parts Enlarged View
