The world's most full-featured Simulation and Analysis program
for Power System Transients.
|
|
The benefits of EMTP-RV:
- • Easy to use interface for small or very large networks
- • Automatic initialization from steady-state solution
- • Super fast and stable computation of non-linear elements
- • Ability to fully customize simulation by scripts
- • Power electronics in Power Systems
|
EMTP-RV is a comprehensive software for the simulation
of electromagnetic, electromechanical and control systems transients in multiphase electric power systems.
It features a wide variety of applications in simulation of
power systems transients from microseconds to seconds.
|

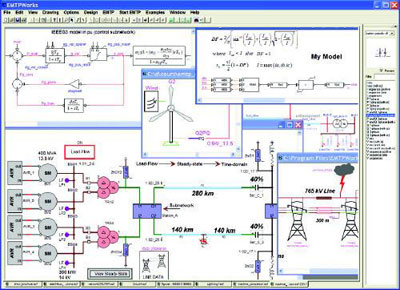

Click to enlarge
|
Key features
- • Detailed modelling of the network component including control, linear and non-linear elements
- • Object-oriented based programming methods
- • Designed for very fast computation with fully dynamic and case-tailored memory usage
- • Capable of handling very large networks
- • Open architecture coding that allows users customization and user side implementation of sophisticated models
- • Control systems with built-in models and encapsulation
- • Automatic initialization from steady-state solution
- • Simultaneous switching options for power electronics applications
- • Code structure designed to be expandable to specialized toolboxes
- • Frequency scans
- • Steady-state solutions: linear harmonic steady-state solution, non-linear harmonic steady-state solution
and three-phase power flow
- • Statistical/systematic analysis
|
