Applications
|
Only one package for numerous applications:
|
|
|

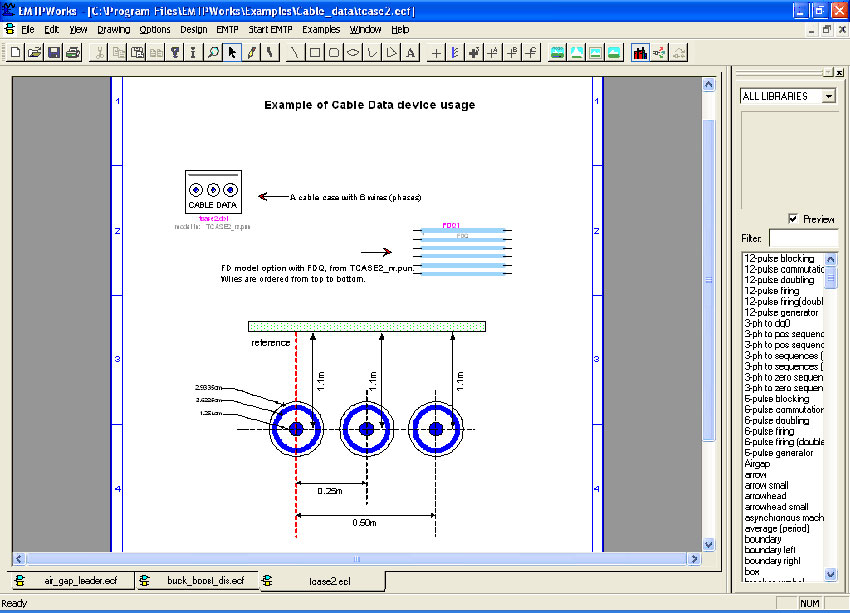

Equipment Modeling and Applications Transformers, transmission lines and cables, surge arresters, non-linear inductances and hysteretic reactors, switches, sources, three phase synchronous and asynchronous machines, split-phase induction motors, automatic initialization |
Click to enlarge
Click to enlarge
Click to enlarge |
|
|
Control Systems Modeling and Applications Available libraries, design practices, advanced options, building and testing machine controllers. |
|
|
|
Insulation Coordination of A Long Radial 500-kV Transmission System System set-up, power-flow and steady-state stability of the system, statistical switching studies and line insulation, temporary overvoltages, usage of line arresters and reclosing resistors, lightning protection of the substations. |
|
|
|

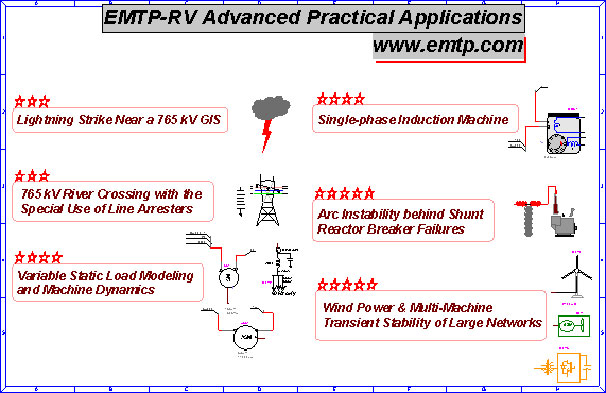

Practical Power System Studies Insulation coordination of a 765-kV GIS, transformer and capacitor bank switching, temporary overvoltage cases, TRV Studies, breaker failure analysis with detailed arc model, detailed substation modeling. Static and dynamic load modeling, transient stability case and influence of load modeling, machine dynamics during start-up and fault situations, subsynchronous resonance. Simulating very large and complex cases. Introduction to voltage stability |
|
|
|
Power Quality Studies Power quality variation categories, impulsive and oscillatory transients, voltage dips due to remote faults or motor starting, harmonic distortions, voltage flicker. |
|
|
|

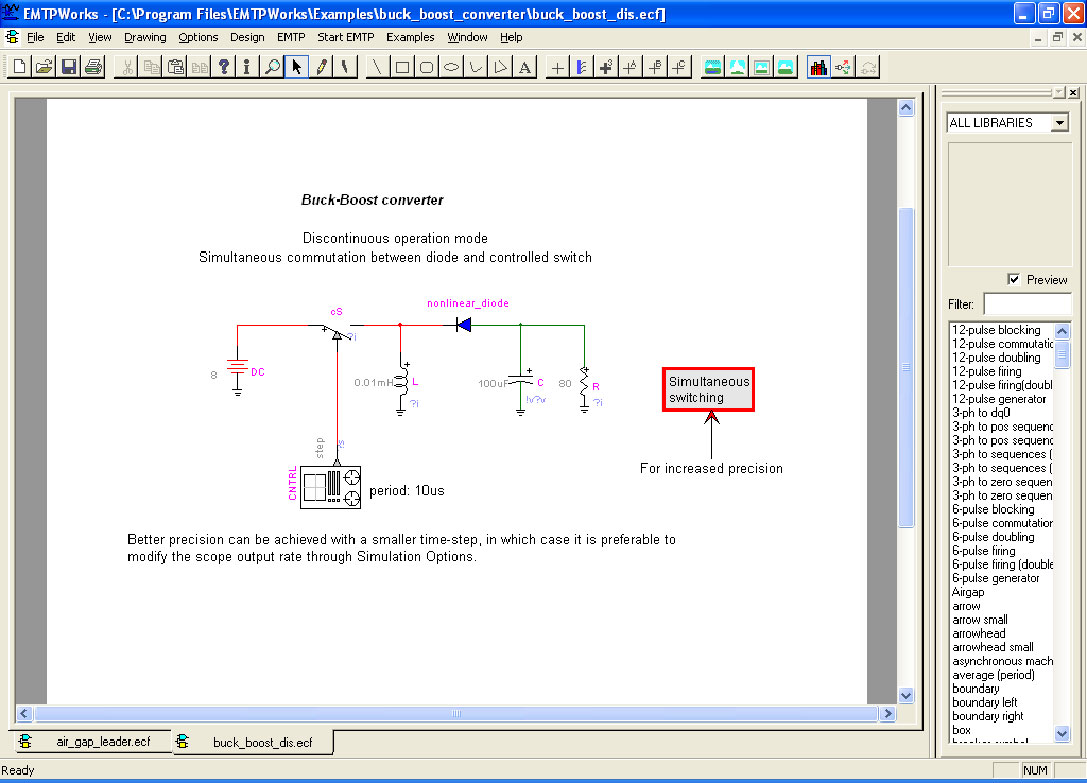

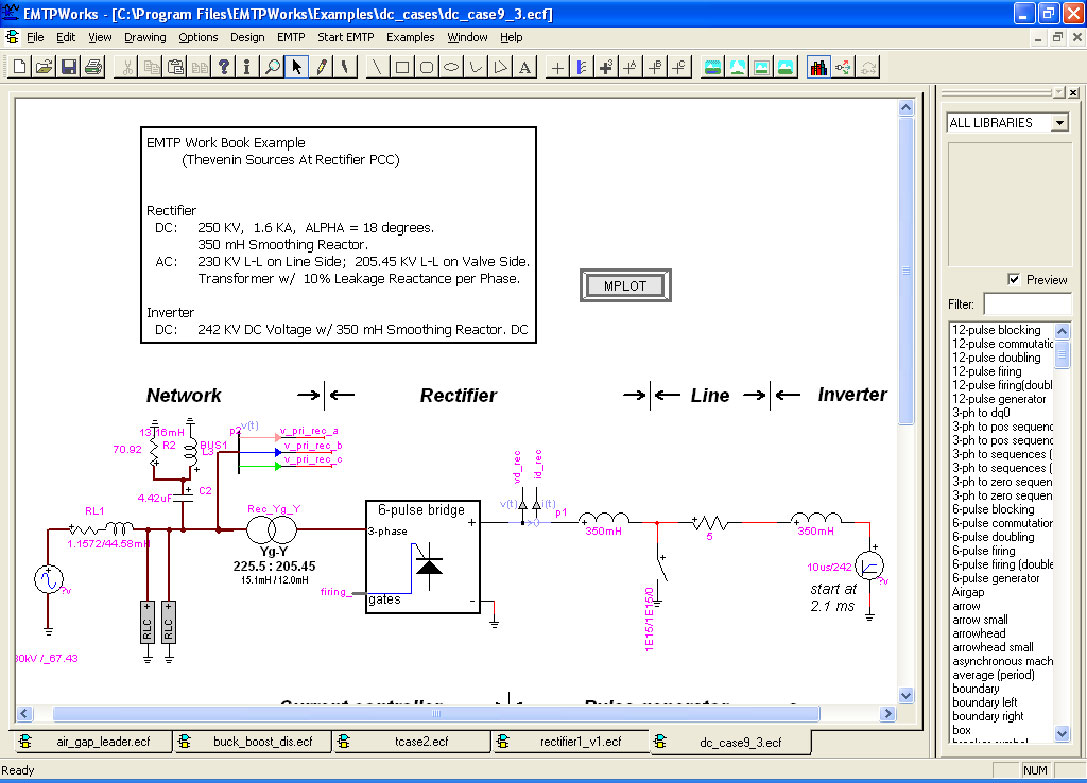

Power Electronics Applications in Power Systems Power converters and switching devices, line/self commuted systems, custom power device principles and operation, modelling issues, static var compensation, voltage source converters using PWM (STATCOM), DC transmission case, wind power generation. |
|
